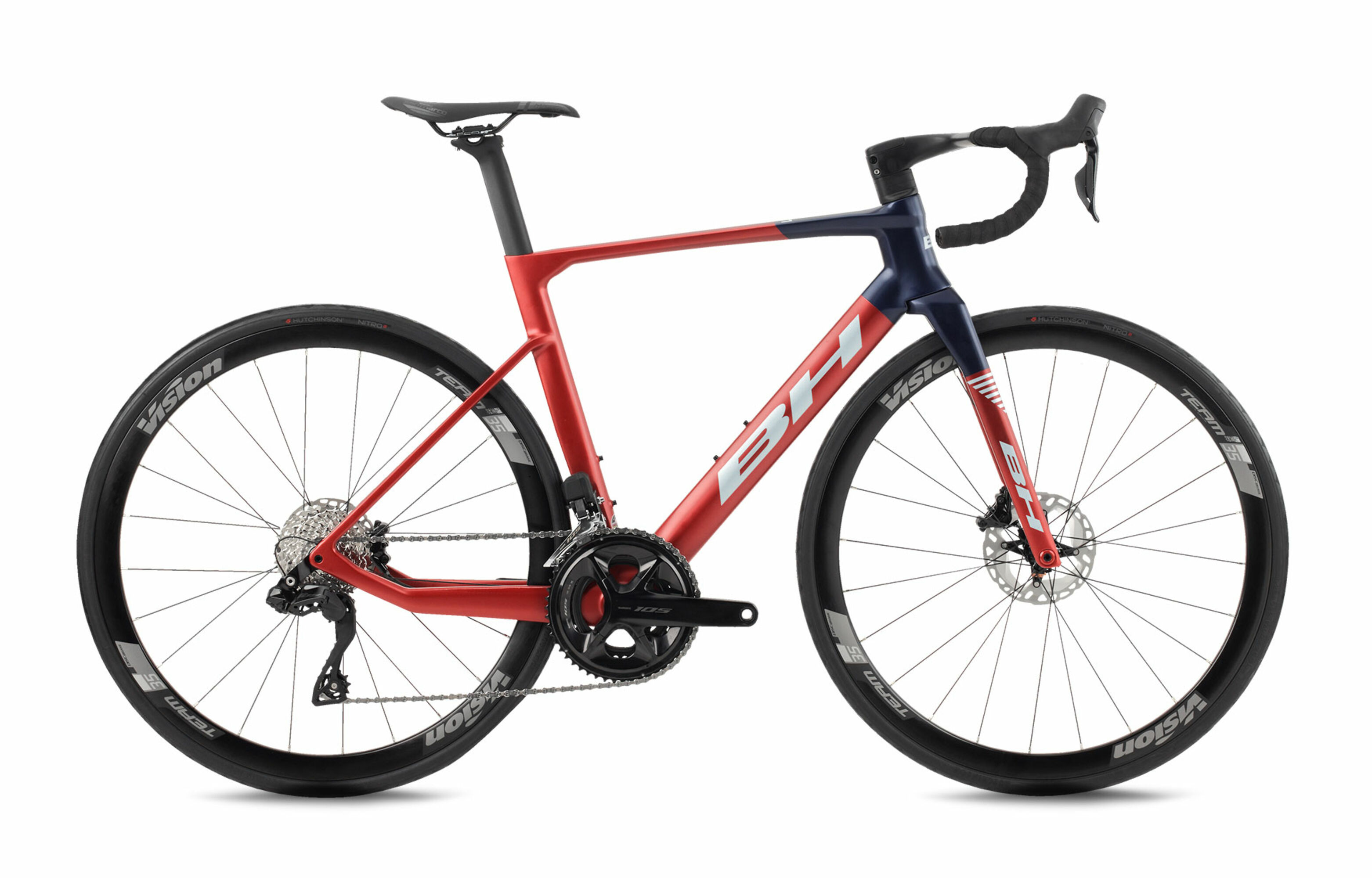

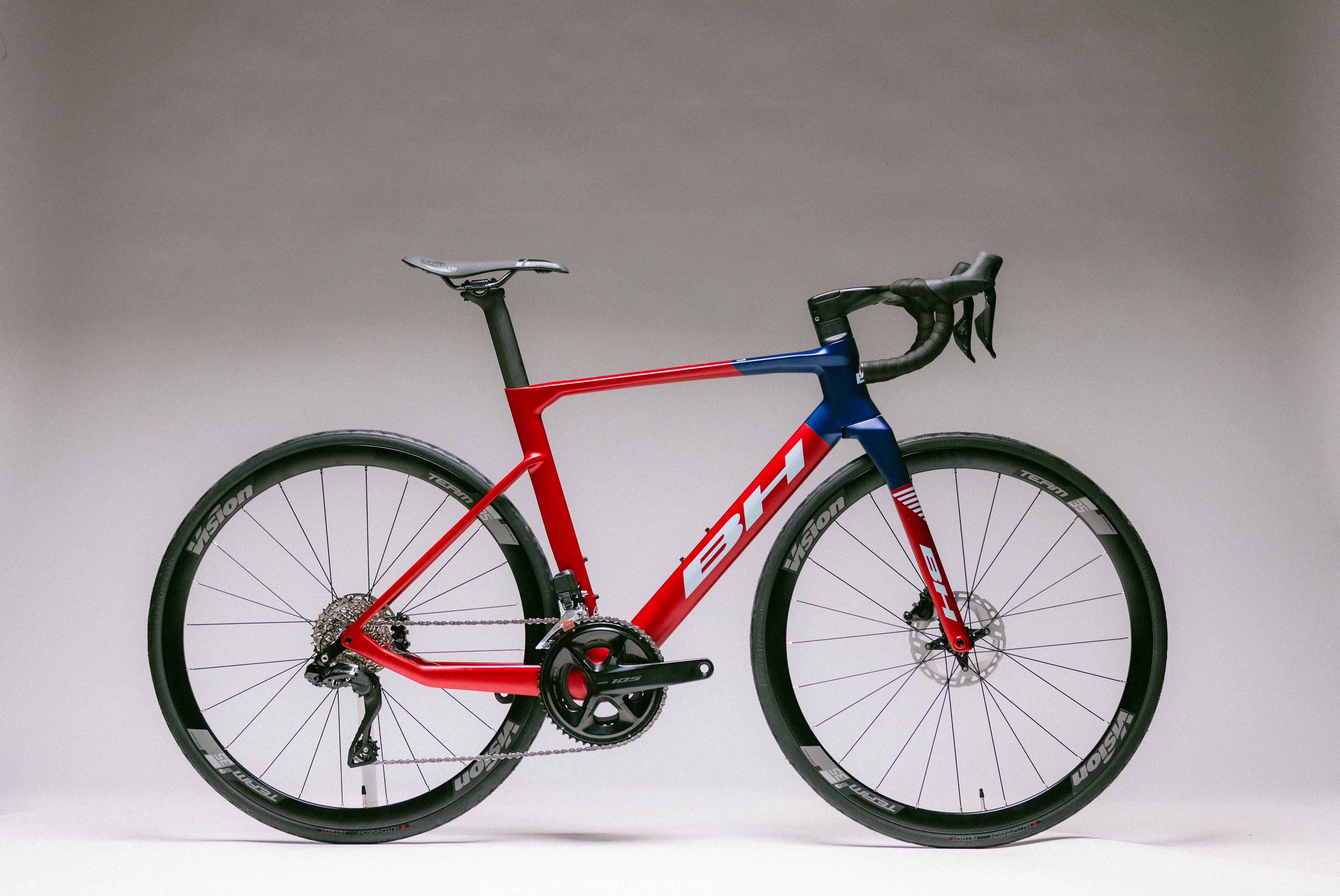

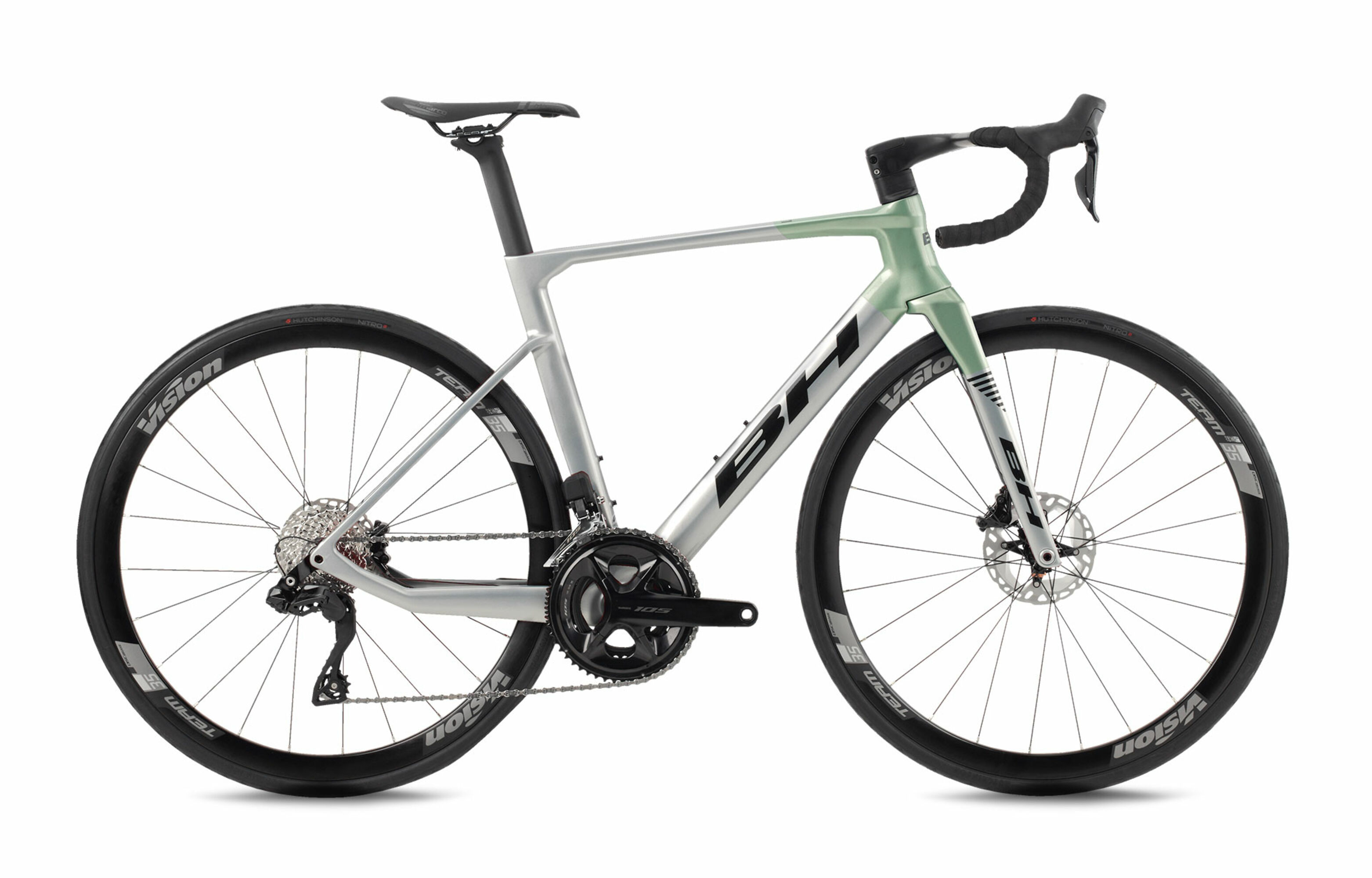

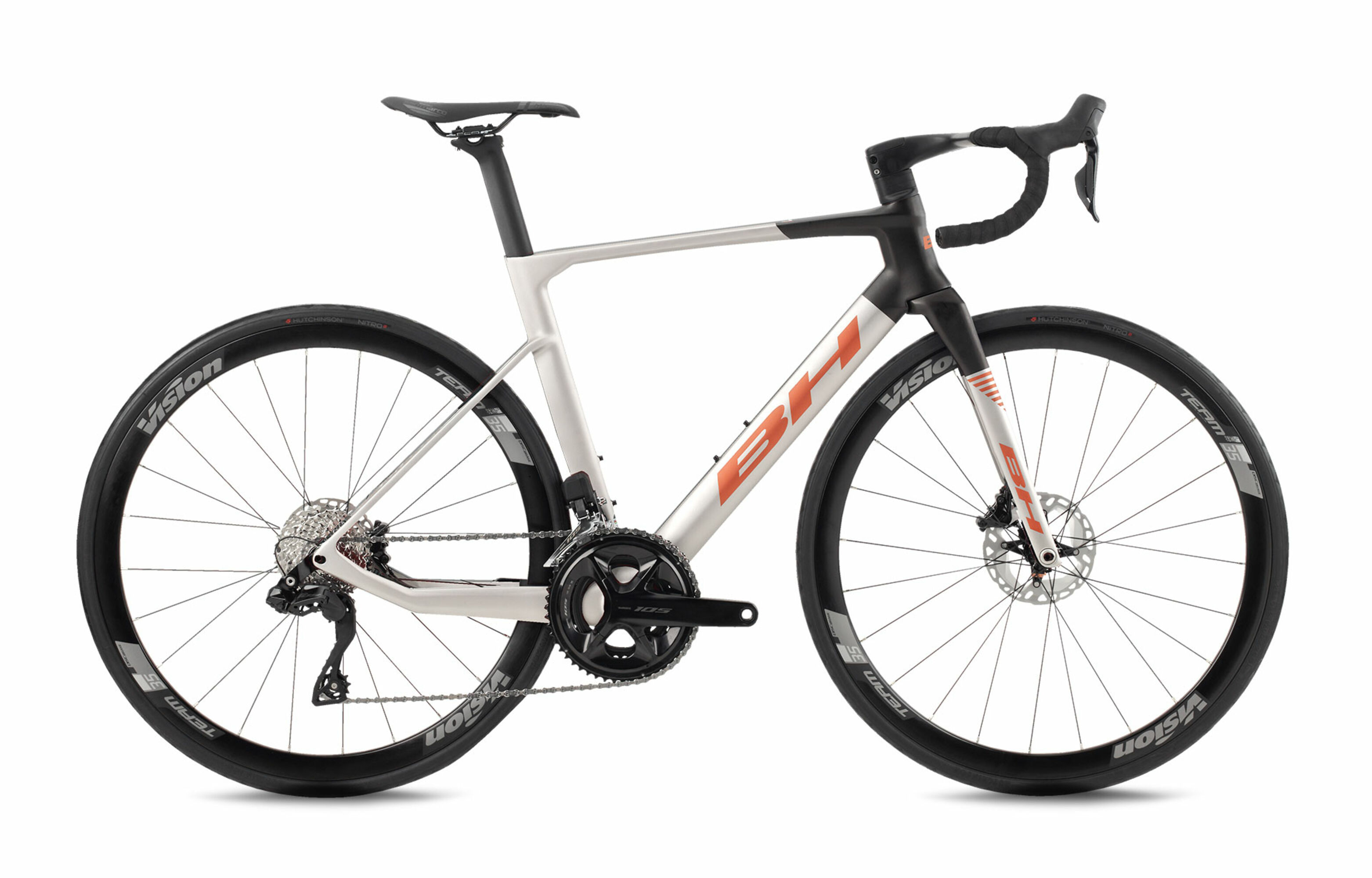

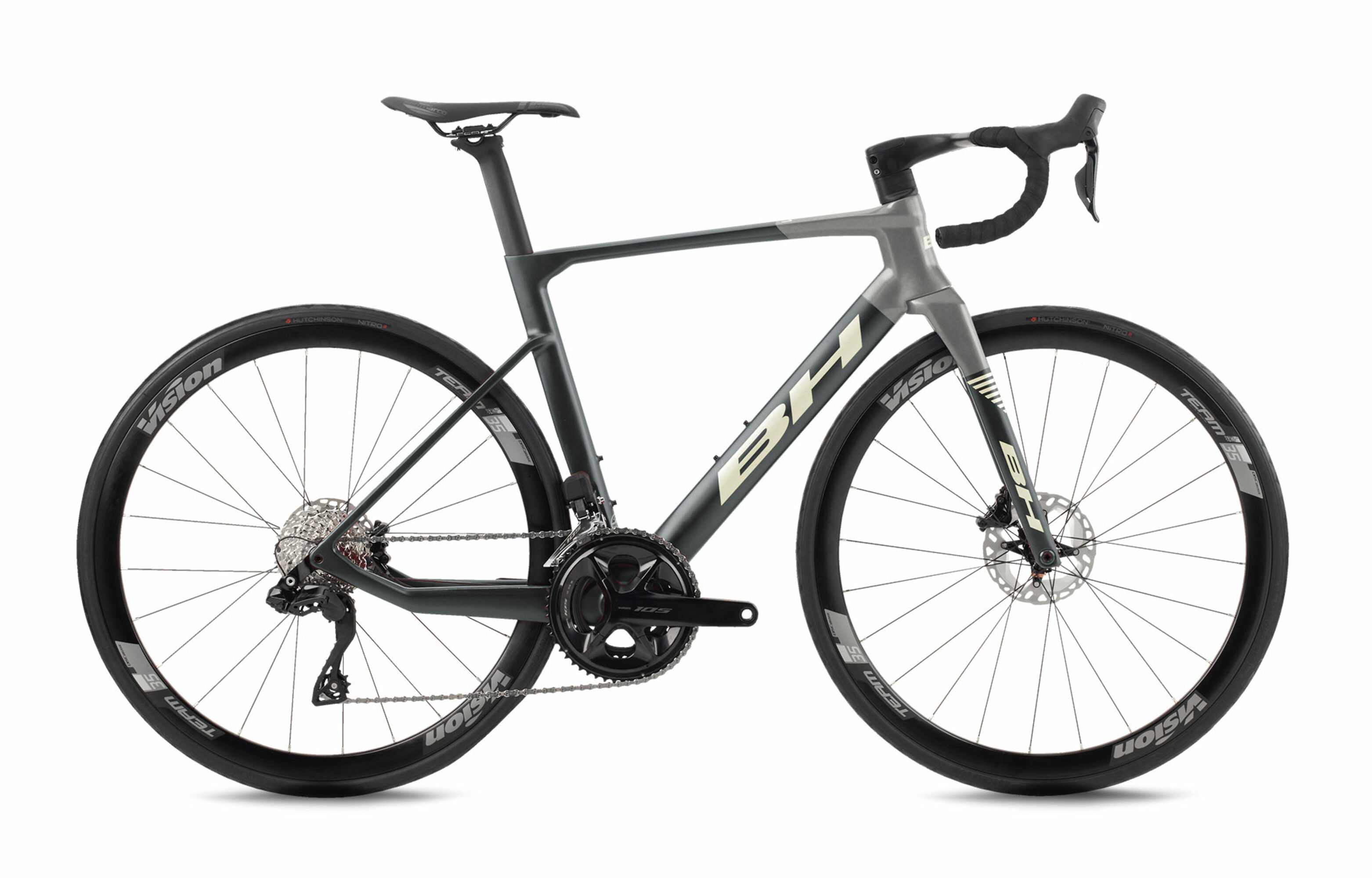

RS1 4.0

ENJOY THE PERFORMANCE

LA406

More aerodynamics, more integration. You are battling with the wind with every turn of your pedals. A battle you will no longer have to fight, so you can start enjoying yourself. Only cyclists know that feeling of performance, power and efficiency that we achieve when body and machine are working at 100%. The addiction to speed. More info

The colors displayed on the website may be slightly different from how they appear in reality.

Which is my bike size?

ENTER THE FOLLOWING DATA

* The size calculation is indicative

Find Nearby Add to cart

Compare media tests

RS1 4.0

ENJOY THE PERFORMANCE

LA406

Size

(*) Please contact your BH Bikes retailer to confirm availability

AERO FEELINGS

The sensations we pursue with the new RS1 are speed, performance, and ergonomics.
In our development process for competition frames, aerodynamics is a fundamental pillar. Years have been dedicated to thorough studies, prototype creation, and simulations to ensure maximum performance and ergonomics designed for long distances.

KAMM TAIL SHAPES

The Kamm Tail shapes in the tube sections make the RS1 a 100% aerodynamically efficient bike.
The aerodynamic design ensures that air flows without generating pressure zones that could affect our speed or the effectiveness of the watts applied. In other words, we have optimized every effort to ensure exceptional performance with every pedal stroke.

PERFORMANCE CARBON LAYUP

BH's technique for frame construction—Hollow Core Internal Molding—involves internal hollowing and high pressure to achieve the highest levels of compact material, eliminate inconsistent pressures, and prevent bubbles and imperfections in the carbon.
Additionally, we use Performance Carbon Layup, which maximizes the bike's lightness-to-stiffness ratio.

STIFFNESS AND REACTIVITY

In the RS1, we have expanded the bottom bracket shell to 86 mm to maximize stiffness. We have optimized the frame tubes to maintain maximum rigidity with minimum thickness.
The RS1's shorter chainstays are a key element for its agility and responsiveness.
This unique combination of agility, responsiveness, and aerodynamic efficiency makes the RS1 an outstanding choice for cyclists seeking optimal performance on any terrain.

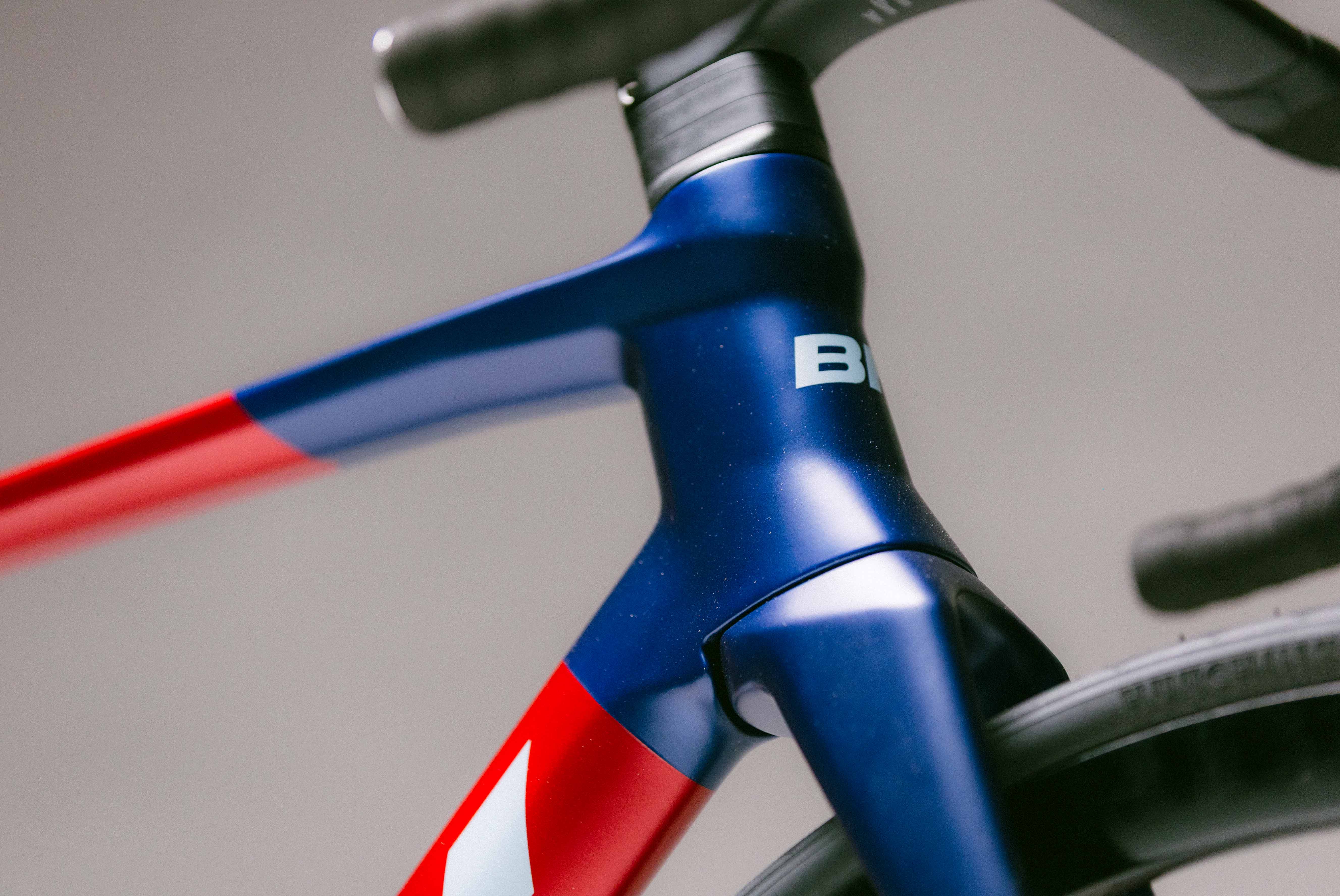

NO VISIBLE CABLES

The frame is clean with all the cabling 100% internal through the ACR system.

HIDDEN QUICK LEVERS

In line with integration, the RS1 features hidden quick-release levers, allowing for tool-free wheel removal while maintaining a clean aesthetic and improved aerodynamics.

ESSENTIAL COMFORT

The RS1 adopts a specific geometry to make its ride comfortable for most cyclists. The front end is higher thanks to a taller head tube, allowing for a comfortable position while maintaining a racing aesthetic.
The rear end balances agility, quick reactions, and descending security. This makes the BH RS1 a bike that combines high performance and comfort, ideal for long days in the saddle, gran fondos, and intense weekend rides.

ENJOY THE PERFORMANCE

Geometry

Specifications

TEKDOC

media test

RS1 4.0

LA406

	XS	SM	MD	LA	XL
H1 - ST LENGTH	460	480	500	520	540
H2 - HT LENGTH	120	135	150	160	190
H3 - FORK LENGTH	389	389	389	389	389
H4 - TT LENGTH	516	531	545	560	576
H5 - FRONT CENTER	569	580	583	596	606
H6 - CHAINSTAY LENGHT	412	412	415	415	418
H7 - WHEEL BASE	965	980	984	1009	1012
H8 - BB DROP	71	71	70	70	70
A1 - ST ANGLE	74,5	74	73,5	73,5	73
A2 - HT ANGLE	71	72	72,5	73	73
reach	370	375	380	388	393
stack	526	544	557	583	597

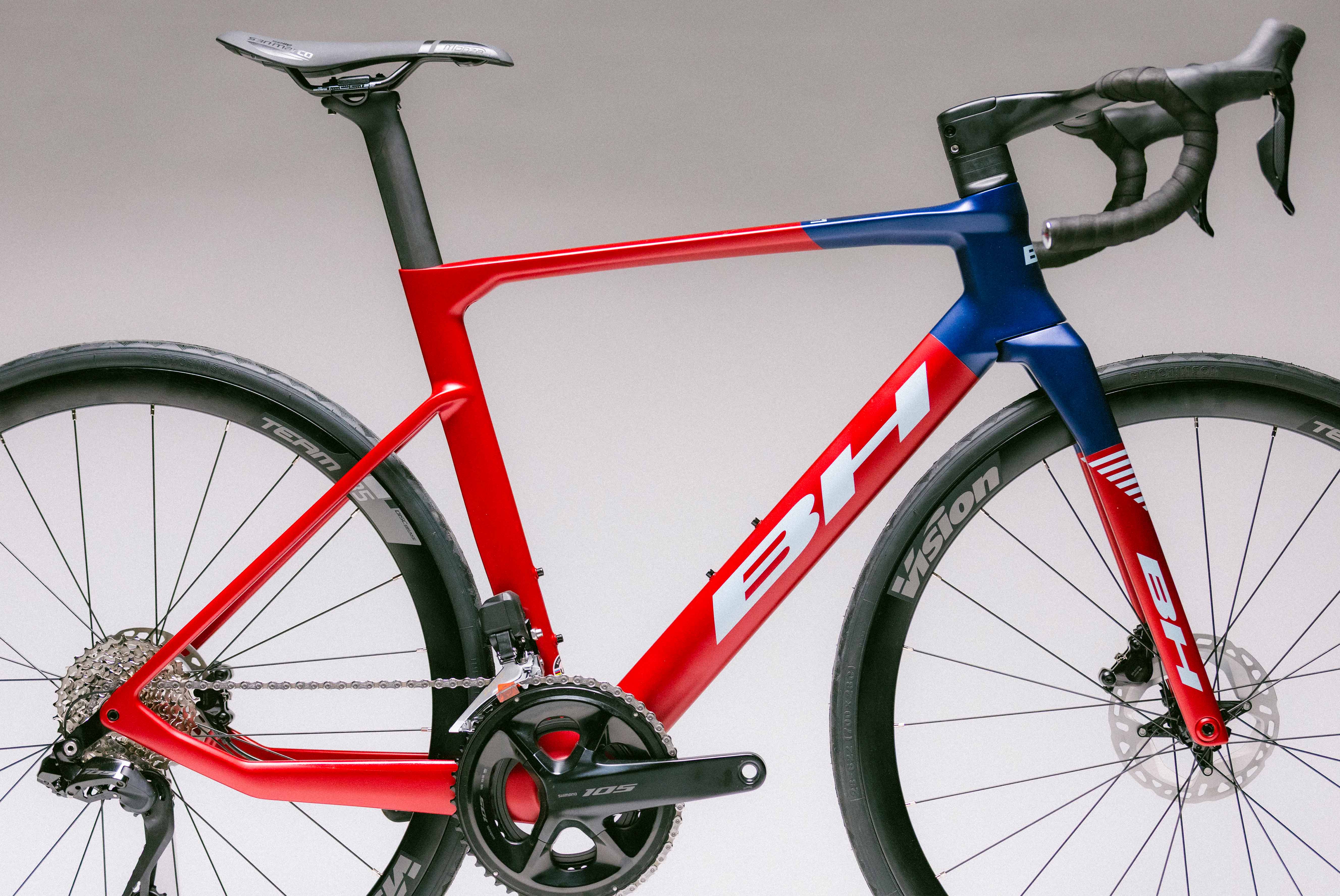

Frame

RS1 Disc ACR Monocoque

Fork

RS1 Disc Full Integrated Tapeder, Full Carbon 1.5

Drivetrain

Shift levers

Shimano 105 DI2

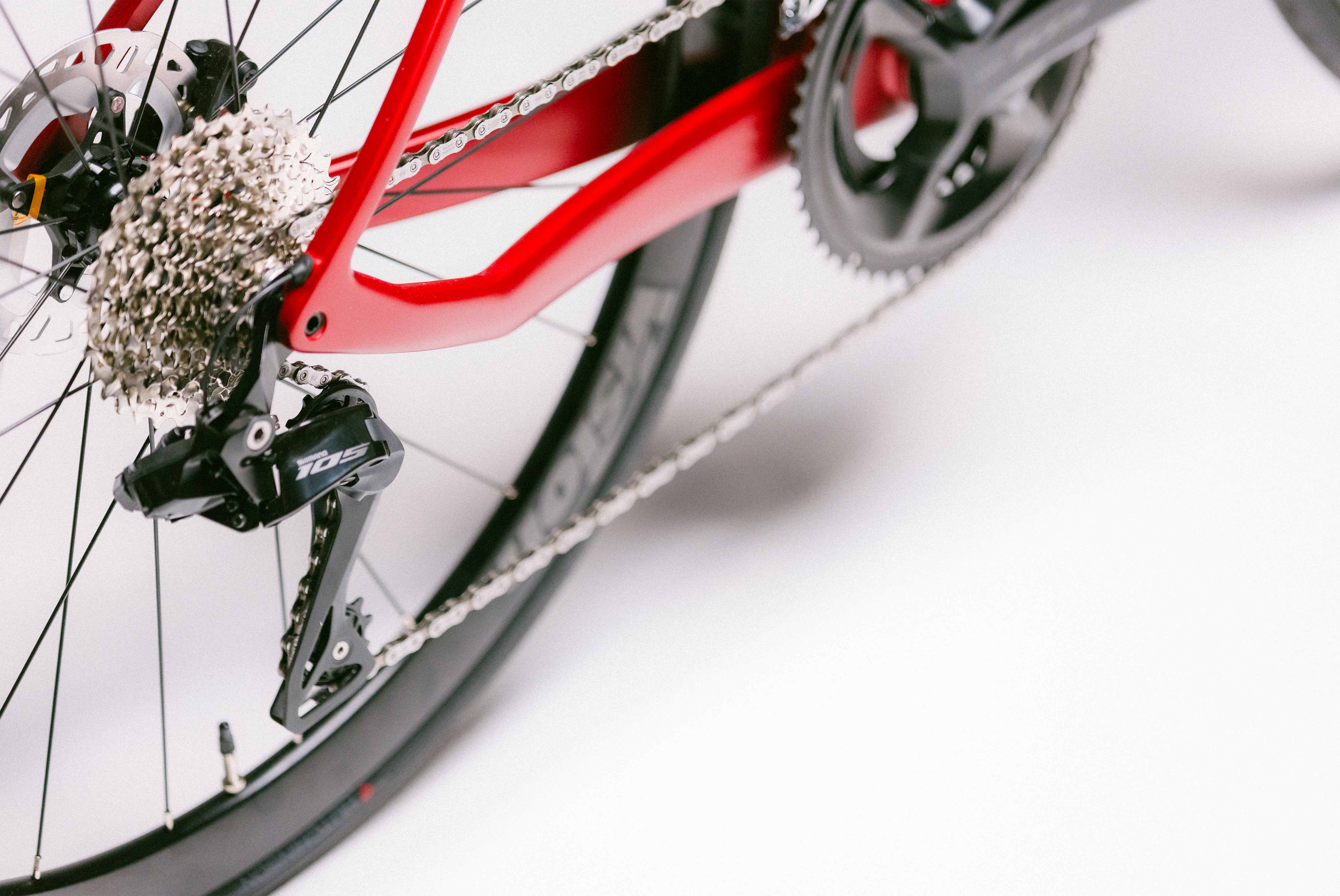

Rear derailleur

Shimano 105 Di2 12sp

Front derailleur

Shimano 105 Di2

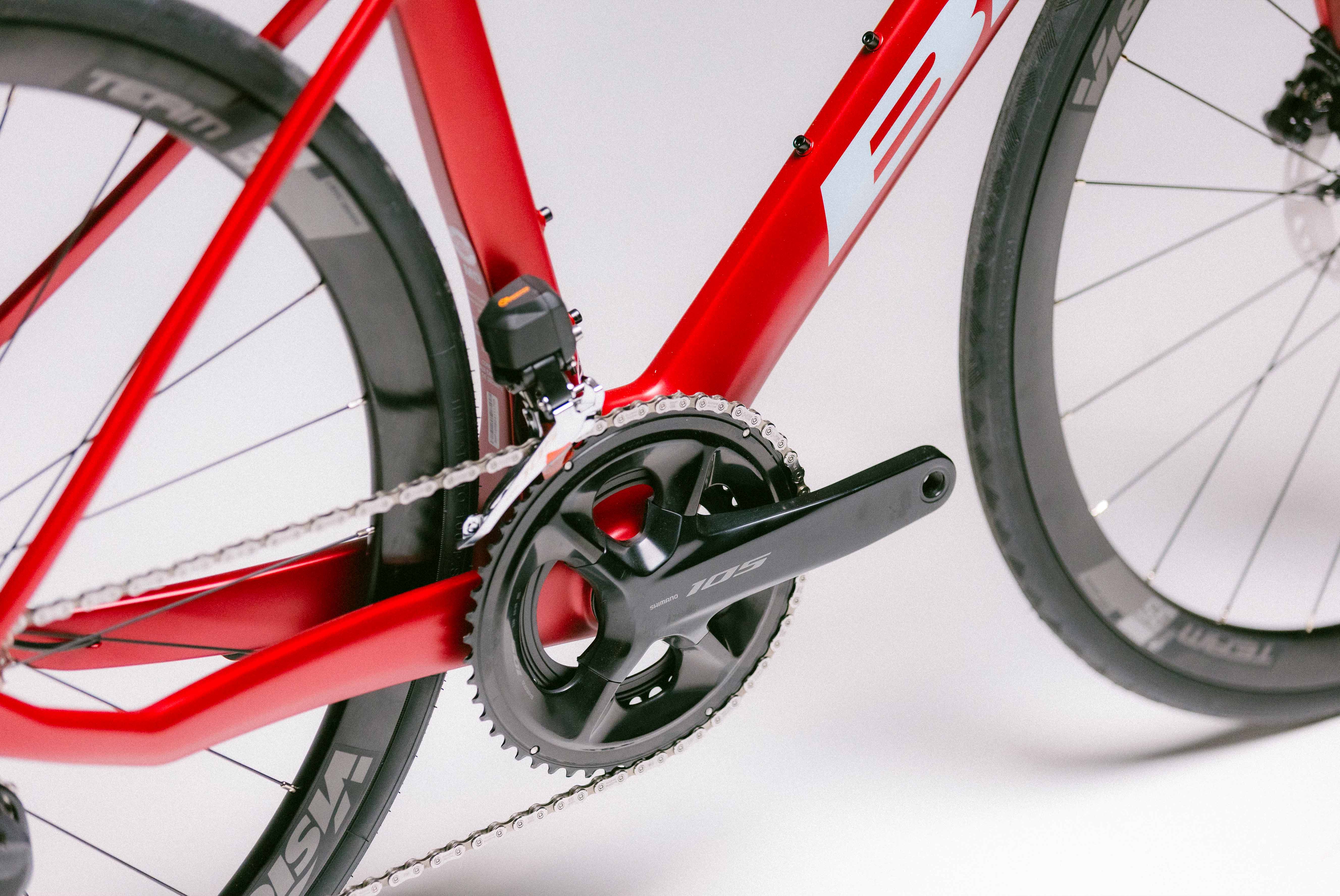

Crank set

Shimano 105 52/36

Crank set

Shimano 105 52/36

XS	170mm
SM	170mm
MD	172,6mm
LA	176mm
XL	176mm

Cassete

Shimano 105 11/34

Chain

Shimano 105

Brakes

Front brake

Shimano 105 hydraulic

Rear brake

Shimano 105 hydraulic

Wheelset

Vision Team35

Tires

Hutchinson Nitro 700x 28

Seat

Saddle

San Marco Monza

Seat clamp

RS1 integrated

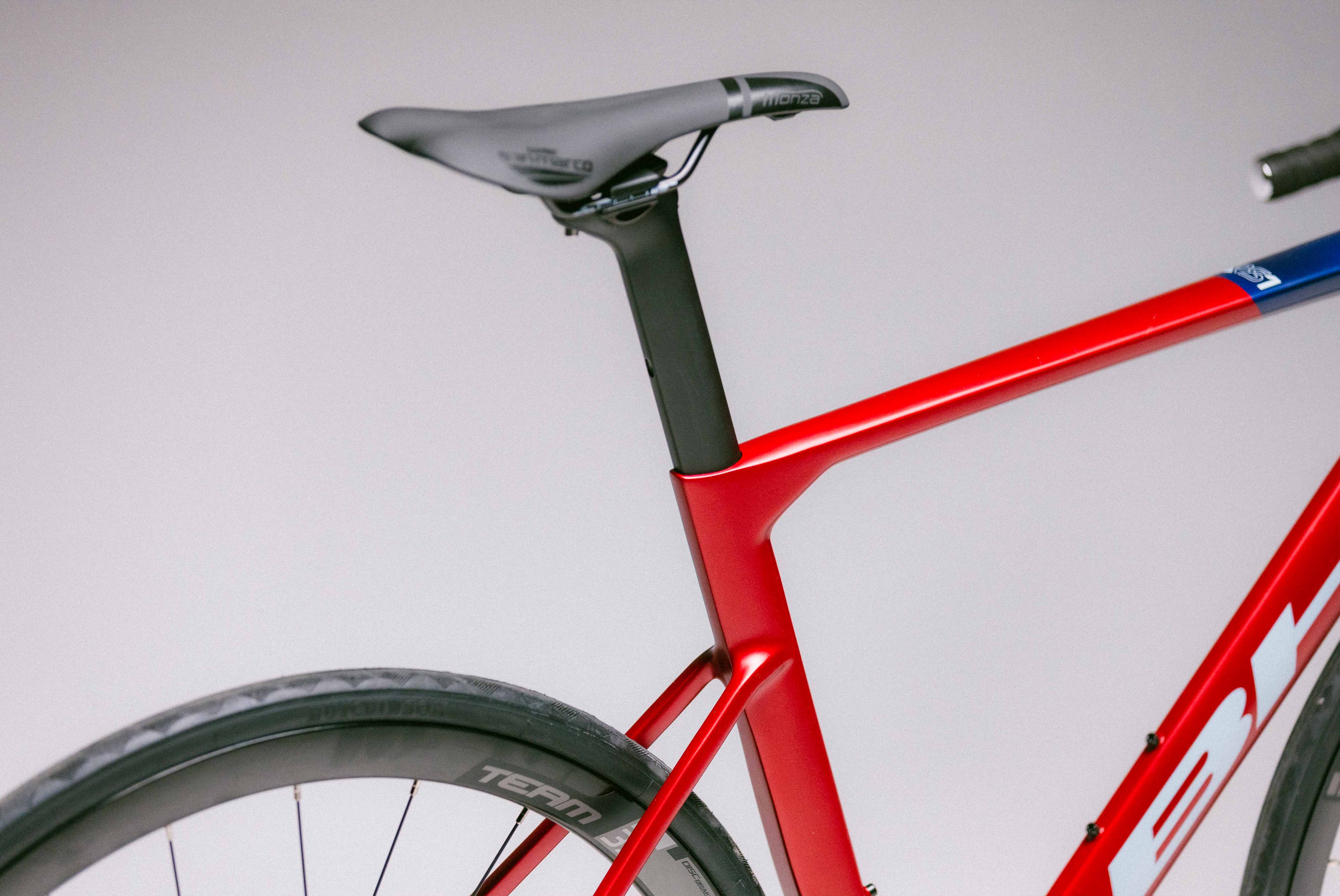

Seatpost

RS1 Aero

Cockpit

Handlebar

EVO SL Monocoque ACR

Handlebar

EVO SL Monocoque ACR

XS	400mm
SM	420mm
MD	420mm
LA	440mm
XL	440mm

Stem

EVO SL Monocoque ACR

Stem

EVO SL Monocoque ACR

XS	90mm
SM	100mm
MD	100mm
LA	110mm
XL	110mm

Headset

FSA ACR

We reserve the right to change product information and components on this website without prior notice, including equipment, specifications, models, colours and materials.
